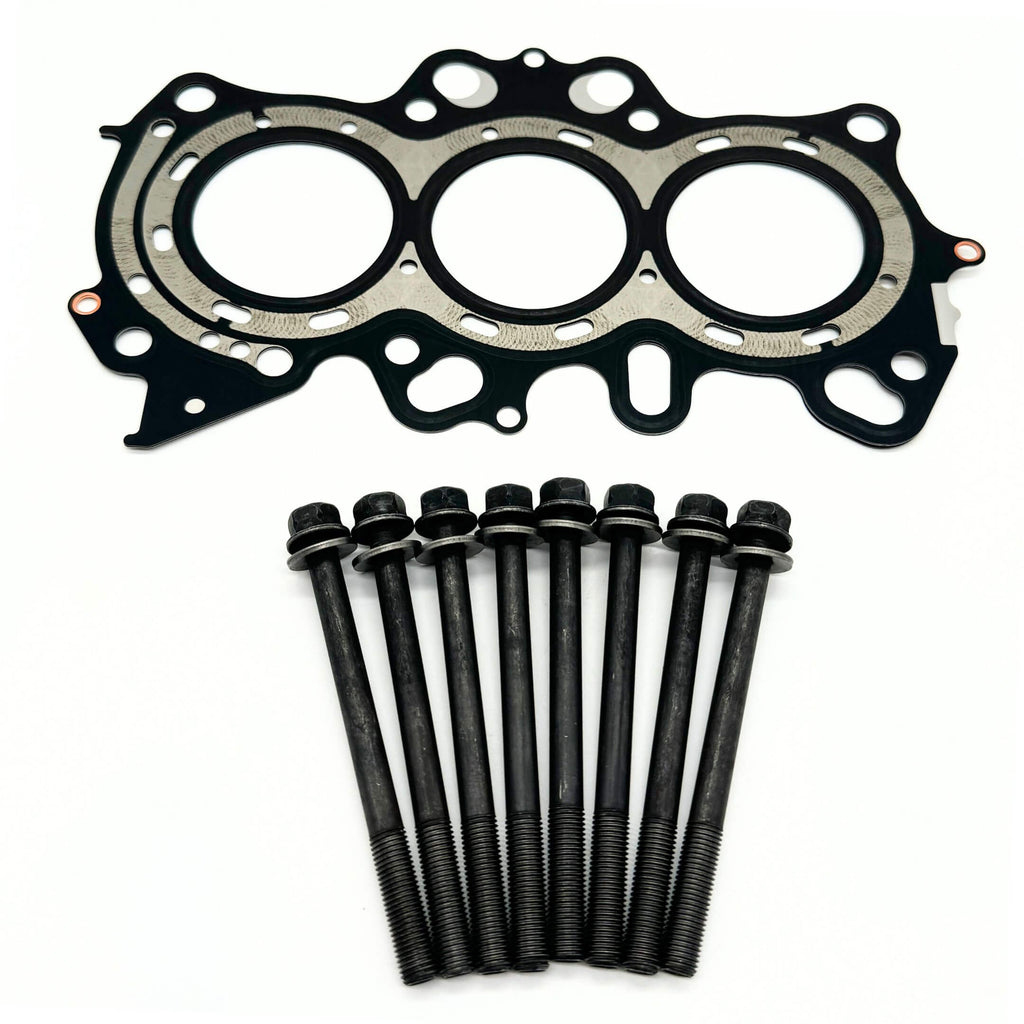

Complete Head Gasket and Bolt Set for Honda Acty Truck HA3 HA4 - 1990-1999 - Top View.

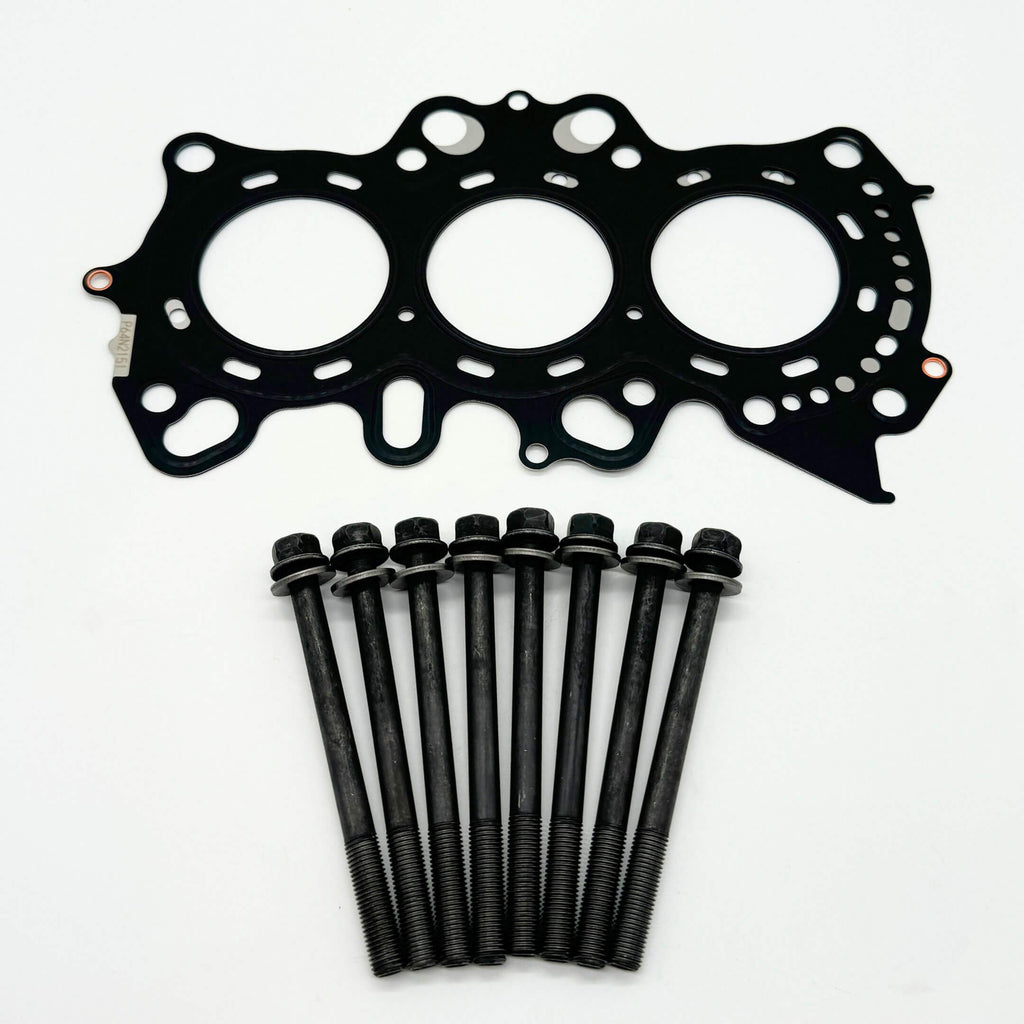

High-Quality Head Gasket and Bolt Set for Honda Acty Truck HA3 HA4 - 1990-1999 - Close-Up.

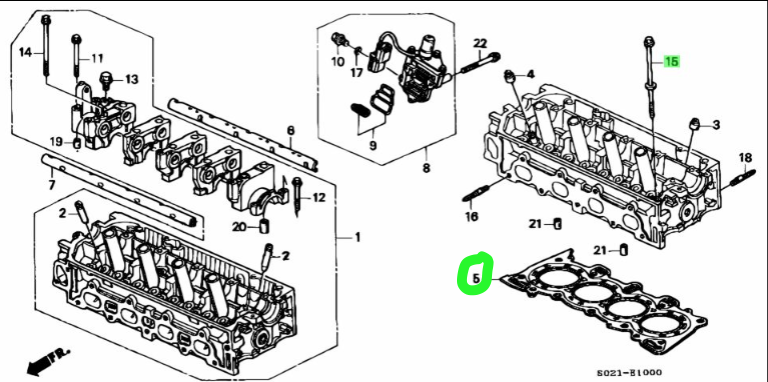

Honda Acty HA3 HA4 1990-1999 Head Gasket & Bolt Set - Engine Diagram Highlighting Cylinder Head Bolt Location.
Roll over image to zoom in Click on image to zoom
Complete Head Gasket and Bolt Set for Honda Acty Truck HA3 HA4 - 1990-1999 - Top View.High-Quality Head Gasket and Bolt Set for Honda Acty Truck HA3 HA4 - 1990-1999 - Close-Up.Honda Acty HA3 HA4 1990-1999 Head Gasket & Bolt Set - Engine Diagram Highlighting Cylinder Head Bolt Location.

Head Gasket & Bolt Set - Honda Acty Truck HA3, HA4 Models - 1990-1999

Oiwa Garage
No reviews
Price:
$209.64
Stock:
In stock

Need help? Call or Text: 562-661-8862

Description

This head gasket and bolt set fits the Honda Acty Truck HA3, HA4 (1990-1999). It combines the head gasket with a fresh bolt set for a head job done right.

What's Included
  • ▪8 Head Bolts
  • ▪1 Head Gasket

In Stock - ships from our California (USA) warehouse

Fast, reliable delivery - no overseas backorder wait.

Vehicle Fitment & Compatibility

Confirm your chassis code against the table below before ordering.

Honda Acty Truck HA3, HA4 (1990-1999) - fitment
Make Honda
Model Acty Truck
Chassis Codes HA3, HA4
Years 1990-1999
Part Type head gasket and head bolt set

100% Fitment Guarantee

Not sure about fit? Add your chassis/VIN number at checkout and we confirm it before we ship. If a part does not fit your Acty, we exchange it or refund you in full.

Reasons to choose this head gasket and bolt set

  • You are doing a head gasket
  • You want fresh bolts with the gasket
  • A head that needs correct clamping and sealing

Features & Function

  • Head gasket and bolts together
  • Correct set for the E07A
  • Supports a proper, lasting seal

Installation Specifications

  • Difficulty: Advanced.
  • Estimated time: a full day of engine work.
  • Required tools: A torque wrench, a socket set, and engine hand tools.

Oiwa Garage Tech Note

"Check the head and block for flatness first, then torque the fresh bolts in the correct sequence and stages. Doing gasket and bolts together removes the guesswork on bolt stretch."

Frequently Asked Questions

How do I confirm a head job is needed?

White smoke, coolant loss with no leak, oil and coolant mixing, or compression loss between cylinders all point to the head gasket. Confirm with a compression or leak-down test before you commit.

Do I need new head bolts for this job?

Yes - the head bolts are torque-to-yield and stretch once used, so fit the fresh bolts in this set and torque them in sequence to spec.

Should I replace this if it is not leaking yet?

If you already have the area apart for other work, fit a fresh one while the labor is done. Otherwise replace it once it weeps.

Fitment verified by the Kei truck specialists at Oiwa Garage · Listing updated June 2026.
